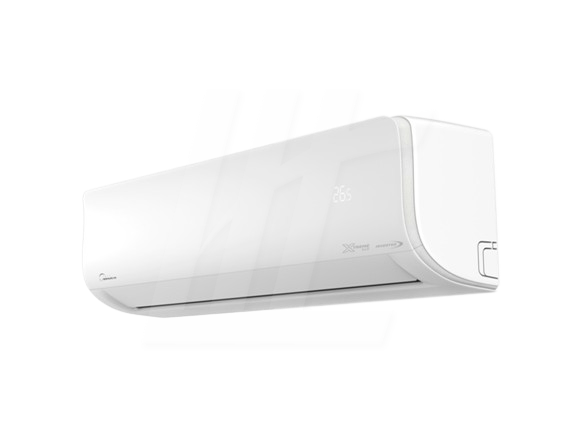

Midea 1.0HP Inverter Air Conditioner R32

Midea 1.0HP Inverter Air Conditioner R32

AC001-011-3
MODEL:MSXS-10CRN8

Product Description

Full specifications
Indoor Unit
Indoor air flow (H) 580 (341) m3/h(cfm)
Indoor Sound level (H L) 39/34 dB(A)
Dimension(W*D*H) 835x208x295 mm
Packing (W*D*H) 905x355x290 mm
Net Gross weight 8.9/11.8 Kg
Outdoor Unit
Outdoor Sound level 51 dB(A)
Dimension(W*D*H) 720x270x495 mm
Packing (W*D*H) 835x300x540 mm
Net Gross weight 21.7/23.6 Kg
Refrigerant Charge R32/380g
Design pressure 4.3/1.7 MPa
Refrigerant piping
Liquid side Gas side mm(inch) Φ6.35/Φ.52(1/4"/3/8")
Max. refrigerant pipe length 25 m
Max. difference in level 10 m
Misc
Cooling Capacity 10,000(4,981~11,075) Btu/h
Running current 3.4(1.50~3.97) A
CSPF(Cooling seasonal performance factor) 4.93 Wh/Wh
Power supply 220-240V~,50Hz,1Ph (power supply to indoor) V,Hz,Ph
Indoor-Outdoor connection wiring (Not included) 4x1.5 mm2
Power supply wiring(Not included wire) 3x1.5 mm2
Thermostat type Wireless Remote Control (Wifi control, Wire control optional)
Power consumption 780(344~913) W
